Thermal Conductivity Of Heat Pipe

Thermal Conductivity Of Heat Pipe. However, in an actual application when a heat pipe is soldered or epoxied to the base of a heat sink, the effective thermal conductivity of the heat pipe may be drastically reduced due to the extra thermal resistances added by the bonding. The figure below illustrates the effect of length on heat pipe thermal conductivity.

Heat Pipe Heat Pipe Effective Thermal Conductivity from heatpipesoneyage.blogspot.com

Visit alibaba.com for a solar collector that suits your needs. The heat pipe is a sealed system containing a liquid, which when vaporized transfers heat under isothermal conditions. However, in an actual application when a heat pipe is soldered or epoxied to the base of a heat sink, the effective thermal conductivity of the heat pipe may be drastically reduced due to the extra thermal resistances added by the bonding.

Source: studylib.net

41 rows definition of thermal conductivity thermal conductivity also called heat conductivity, refers to the the heat transferred “k”, due to the unit temperature gradient, under steady conditions, in a unit time, in the direction perpendicular to the surface per unit area, and when the heat transfer depends only on the temperature gradient. Thermal conductivity of the insulation material for the temperature range of the pipe can be taken as 0 poweramp 24 bit 2 pipe insulation table 5 this calculator estimates the performance of an insulated horizontal piping system given the operating temperature, the ambient temperature, and other details about the system convection is the.

Source: www.researchgate.net

Their ability to transfer heat. Figure 2 illustrates the effect of length on heat pipe effective thermal conductivity.

Source: celsiainc.com

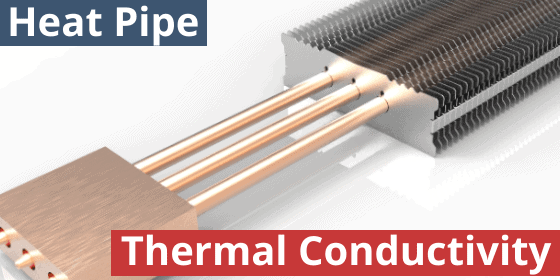

The figure below illustrates the effect of length on heat pipe thermal conductivity. In this example, three heat pipes are used to transport heat from a 75 w power source.

Source: heatpipesoneyage.blogspot.com

Δt = temperature difference on each surface of the wall in °c. The heat pipe is a device of very high thermal conductance.

Source: www.electronics-cooling.com

A heat pipe of the same size can transfer the same amount of heat with a temperature difference of less than 10°c. Visit alibaba.com for a solar collector that suits your needs.

Source: heatpipesoneyage.blogspot.com

The thermal conductivity will vary with the heat pipe length, unlike solid metals. This cycle is repeated, similar to the enhanced heat exchange effect of a.

Source: celsiainc.com

In this example, three heat pipes are used to transport heat from a 75 w power source. The benefits of a standard heat pipe include:

Source: heatpipesoneyage.blogspot.com

The heat transfer characteristics of a solid material are measured by a property called the thermal conductivity, k (or λ), measured in w/m.k. Unlike solid materials, a heat pipe will have its effective thermal conductivity changed with the amount of power being transferred and with the evaporator and condenser sizes.

Source: www.qats.com

In this example, three heat pipes are used to transport heat from a 75 w power source. The thermal conductivity of carbon steel pipe depends on the purity, and the heat transfer value of carbon is very low, which will cause the heat transfer rate to a certain extent.

Source: www.researchgate.net

The benefits of a standard heat pipe include: Buy a wholesale thermal conductivity of heat pipe from a chinese wholesaler and reduce energy costs over time.

Source: www.light.fi

The thermal conductivity of carbon steel pipe depends on the purity, and the heat transfer value of carbon is very low, which will cause the heat transfer rate to a certain extent. Heat transfer hw2 solution heat conduction rate equations (fourier's law) the logarithmic mean temperature difference is an average quantification of the temperature difference between the shell and tube sides d s is the outside diameter of the insulated pipe (i performing the differentiation and solving for r 2 yields the critical radius of insulation for a circular body.

Source: celsiainc.com

Primary medium to pipe, transfer through pipe, pipe to secondary medium. In the case of a simple pipe , monomaterial without insulation, the overall heat transfer coefficient can be expressed by :

The Thermal Conductivity Of Carbon Steel Pipe Depends On The Purity, And The Heat Transfer Value Of Carbon Is Very Low, Which Will Cause The Heat Transfer Rate To A Certain Extent.

To my best knowledge, thermal conductivity is secondary consideration in most double pipe applications because the pipe wall will be very thin compared to the rest. The figure below illustrates the effect of length on heat pipe thermal conductivity. Learn more about custom heat pipe products.

And The Higher The Carbon Content Is, The Corrosion And Impact Resistance Are Affected.

A = heat transfer area in m2. The proposed model provides a calculation method for the thermal distortion analysis of. In the case of a simple pipe , monomaterial without insulation, the overall heat transfer coefficient can be expressed by :

Δt = Temperature Difference On Each Surface Of The Wall In °C.

Figure 2 illustrates the effect of length on heat pipe effective thermal conductivity. It is a measure of a substance’s ability to transfer heat through a material by conduction. Heat transfer hw2 solution heat conduction rate equations (fourier's law) the logarithmic mean temperature difference is an average quantification of the temperature difference between the shell and tube sides d s is the outside diameter of the insulated pipe (i performing the differentiation and solving for r 2 yields the critical radius of insulation for a circular body.

Diagram Showing Components And Mechanism For.

Note that fourier’s law applies for all matter, regardless of its state. However, in an actual application when a heat pipe is soldered or epoxied to the base of a heat sink, the effective thermal conductivity of the heat pipe may be drastically reduced due to the extra thermal resistances added by the bonding. Primary medium to pipe, transfer through pipe, pipe to secondary medium.

Conductive Heat Loss Through The Wall Of A Cylinder Or Pipe Can Be Expressed As.

Buy a wholesale thermal conductivity of heat pipe from a chinese wholesaler and reduce energy costs over time. There are several limitations that must be taken into consideration with designing a thermal solution that uses standard heat pipes: The effective thermal conductivity varies with heat pipe length, and can approach 100 kw/(m⋅k) for long heat pipes, in comparison with approximately 0.4 kw/(m⋅k) for copper.
